HANDPIECE OVERVIEW

Optic turbines

(high speed handpieces with light)

Download/view NSK Offers Flyer
Contact NSK

Ti-Max or S-Max

For optic turbines choose Ti-Max or S-Max. Ti-Max has a lightweight titanium body with enhanced grip to minimise hand fatigue. Plus a 3 year warranty. Or S-Max, a stainless steel turbine with a 2 year warranty.

New to the Ti-Max range, are 2 high-performance turbines – Z990L and Z890L. As well as unprecedented power these turbines come with a new ‘quick stop’ function and an enhanced chuck to complement the power. They also have a 100˚ angled head for better visibility and access to the molar region.

All Ti-Max and S-Max turbines have 4 hole spray and Clean Head System.

Please look through the head sizes / power / coupling fittings / offers, to see which turbine best meets your needs. For further product information, click on the model number (in orange) in the first column of the chart below or contact us here at NSK.

Ti-Max

Z990L NEW high performance turbine
Z890L NEW high performance turbine
Z990L NEW high performance turbine
Size / Power Fitting Model Order Code RRP Warranty Offer
Z990L Std head: Ø 12.1 x 12.7mm Power 30-44w* New high performance turbine NSK Z990L PA23730001 £1,214 3 years
4 years
for iClave users
 iClave plus		 2 + 1 FREE + a further FREE Z micro (with ultra mini-head)
KaVo® Z990KL PA23750001
Dentsply Sirona® Z990SL PA23770001
W&H® Z990WL** PA23870001
Bien-Air® Z990BL** PA23850001
Z890L Min head: Ø 10.6 x 10.8mm Power 28-41w* New high performance turbine NSK Z890L PA23720001
KaVo® Z890KL PA23740001
Dentsply Sirona® Z890SL PA23760001
W&H® Z890WL** PA23860001
Bien-Air® Z890BL** PA23840001
Z micro Micro head: Ø 9 x 10.8mm Power 20w NSK Z micro PA23570001
KaVo® Z micro KL PA23580001
Dentsply Sirona® Z micro SL PA23590001
W&H® Z micro WL PA23610001

*With air pressure at 3 to 4.2 bar. **Compatible Turbines with Integral LED KaVo and Multiflex are registered trademarks of KaVo Dental GmbH. Dentsply Sirona and Sirona are registered trademarks of Dentsply Sirona Inc. W&H and Roto Quick are registered trademarks of W&H Deutschland GmbH. Bien Air and UNIFIX are registered trademarks of Bien-Air Holding SA.

S-Max

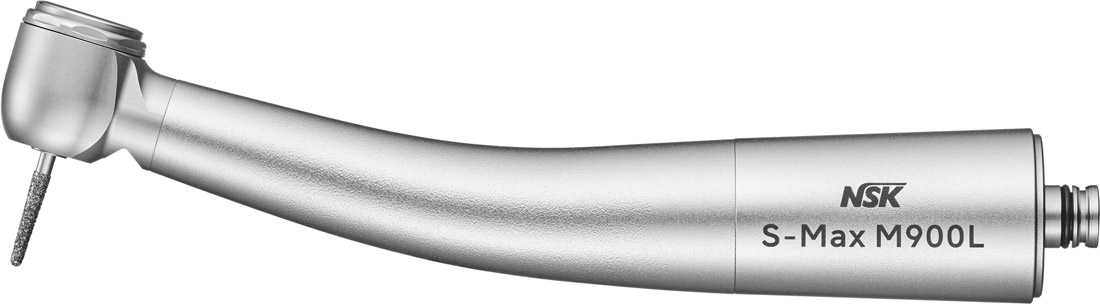

M900L
M800L
S-Max pico
Size /Power Fitting Model Order Code RRP Warranty Offer
M900L Std head: Ø 12.1 x 13.3mm Power 26w NSK M900L P1254001 £800 2 years
3 years
for iClave users
 iClave plus		 3+1 FREE
+ 1 FREE Pico
KaVo® M900KL P1258001
Dentsply Sirona® M900SL P1262001
W&H® M900WL P1266001
Bien-Air® M900BL P1264001
M800L Min head: Ø 10.6 x 12.4mm Power 23w NSK M800L P1254001
KaVo® M800KL P1257001
Dentsply Sirona® M800SL P1261001
W&H® M800WL P1265001
Bien-Air® M800BL P1263001
Pico Head: Ø 8.6 x 9mm Power 9w ONLY for Short shank burs NSK Pico P1140001 £1,160 N/A
KaVo® Pico KL P1142001
Dentsply Sirona® Pico SL P1143001
W&H® Pico WLED P1145001
Bien-Air® Pico BLED P1144001

NON-Optic turbines

(high speed handpieces without light)

S-Max or Pana-Max2

S-Max (superior power, 4 hole spray & 2 year warranty) or Pana-Max2 (single hole spray, a 12 month warranty, and options for direct connection to the hose). Both are Stainless steel, have the ‘Clean head system’ and the facility for DIY cartridge change.

S-Max

S-Max M900
S-Max M800
Size /Power Fitting Model Order Code RRP Warranty Offer
M900 Std head: Ø 12.1 x 13.3mm Power 26w NSK M900 P1256001 £745 2 years
3 years
for iClave users
 iClave plus		 1+1 FREE
KaVo® M900K P1259001
W&H® M900W P1287001
M800 Min head: Ø 10.6 x 12.4mm Power 23w NSK M800 P255001

Pana-Max2

Pana Max2 PTL
Pana-Max2 M4
Size /Power Fitting Model Order Code RRP Warranty Offer
Head: Ø 11.2 x 13.4 mm Coupling connection PTL (NSK) Pana-Max2 P1211001 £484 1 year
2 years
for iClave users
 iClave plus		 1+1 FREE
KV (KaVo) Pana-Max2 KV P1212001
Head: Ø 11.2 x 13.4 mm Direct connection B2 (Borden)* Pana-Max2 B2 P1155001 £439
M4 (Midwest)* Pana-Max2 M4 P1154001

*Direct connection to hose, no coupling required.

Speed Increasing Contra-Angles

(require an electric micromotor to run on)

Ti-Max or S-Max

Ti-Max (lightweight titanium external body, narrower neck/head and 3 year warranty) v S-Max (stainless steel and 2 year warranty).

Ti-Max Z95L and S-Max M95L are the regular length with the nano95LS* 10% shorter than the Z95L.
The Ti-Max Z95L & Z45L have the unique two-way spray switch, not only does switching the spray air off (leaving water jet only) further reduce aerosols, it also offers the advantage of reducing the chance of an embolism as the Z45L with its 45° head is mostly used for minor oral surgery.

*requires short shank motor, eg NLXnano, NLX Plus, NLZ.

Ti-Max Z95L handpiece
Ti-Max nano95LS
Ti-Max Z45L sw
S-Max M95L
Name Head Size Type Model Order Code RRP Warranty Offers
Ti-Max Ø 8.9 x 13.4 mm 1:5 Optic + Switch + 100° angled head Z99L CA13140001 £1,666 3 years
4 years
for iClave users
 iClave plus		 2+1 FREE
+ 1 FREE Z micro
1:5 Optic + Switch Z95L C1034001-SW £1,666
1:5 Optic (10% shorter) nano95LS C1099001 £1,586
Ø 9.6 x 14.5 mm 1:4.2 Optic + Switch + 45° angled head Z45L C1064001 £1,666
S-Max Ø 9.9 x 14.5 mm 1:5 Optic M95L C1023001 £1,076 2 years
3 years
for iClave users
 iClave plus		 3+1 FREE
+ 1 FREE pico
1:5 Non-optic M95 C1024001 £893

1:1 Direct Drive Contra-Angles

(Slow speed handpieces)

Ti-Max Z25L
S-Max M25L
FX25m
FX22
Name Type Model Order Code RRP Warranty Offers
Ti-Max Optic with internal water (lighter/narrower neck) Z25L C1038001 £1,320 3 years
4 years
for iClave users
 iClave plus		 2+1 FREE
S-Max Optic with internal water M25L C1024001 £871 2 years
3 years
for iClave users
 iClave plus		 3+1 FREE
Non-optic with Internal water M25 C1027001 £572
FXm Series Non-optic (push button chuck) FX25m C1052001 £282 1 year
2 years
for iClave users
 iClave plus		 1+1 FREE
FX Series Non-optic (latch style chuck) FX22 C1129001 £165 3 for £201
10 for £568

Straight Handpieces

(1:1 Direct Drive)
NSK S-Max M65
FX65m_y
Name Type 1:1 Direct Drive Model Order Code RRP Warranty Offers
S-Max Non-optic with internal water M65 H1008001 £559 2 years
3 years
for iClave users
 iClave plus		 3+1 FREE
FXm Series Non-optic* FX65m H1014001 £255 1 year
2 years
for iClave users
 iClave plus		 1+1 FREE

Surgical Straights

(1:1 Direct Drive)

Straight handpieces for oral surgery all with external spigot for connecting to external water/saline. Typically used with Surgic Pro/Surgic Pro2/Surgic XT.

Ti-Max X-SG65L
Ti-Max X-SG65
Name Type 1:1 Direct Drive Model Order Code RRP Warranty Offers
Ti-Max Optic X-SG65L H1009001 £998 2 years
3 years
for iClave users
 iClave plus		 1 + 1 FREE
Ti-Max Non-optic X-SG65 H1038001 £681

Implant Contra-Angles

(20:1 speed reducing)

Handpieces for implants, all with external spigot for connecting to external water/saline.

Ti-Max X-DSG20L
Ti-Max X-SG20L
S-Max SG20
SGX-E20R Zygomatic
Name Type 20:1 Speed Reducing Model Order Code RRP Warranty Offers
Ti-Max Optic + Dismantlable X-DSG20L C1068001^ £1,635 2 years
3 years
for iClave users
 iClave plus		 1+1 FREE
Optic X-SG20L C1003001^^ £1,331
S-Max Non-optic SG20 C1010001^^^ £1,122
Zygomatic Non-optic zygomatic with twist chuck SGX-E20R HA1200001 £1,637 1 year
2 years
for iClave users
 iClave plus

^ sold with the optic Surgic Pro+
^^ sold with optic versions of Surgic Pro LED and Surgic Pro2
^^^ sold with non-optic versions of Surgic Pro and Surgic Pro2

Contra-Angle offers – Ti-Max 2+1 free can be used with any contra-angle(or straight) in the Ti-Max Z series. S-Max 3+1 free can be used with any contra-angle (or straight) in the S-Max series. FXm 1+1 free can be used with any contra-angle (or straight) in the FXm series. In case of handpieces with different values, the lowest valued item will be the FREE handpiece.

1:1 Direct Drive Contra-Angles / Straights can be used on electric motors and air motors. For handpieces with internal water and optics to work, the spec of the air motor (or micromotor) must at least contain the same features of internal water and optics.
